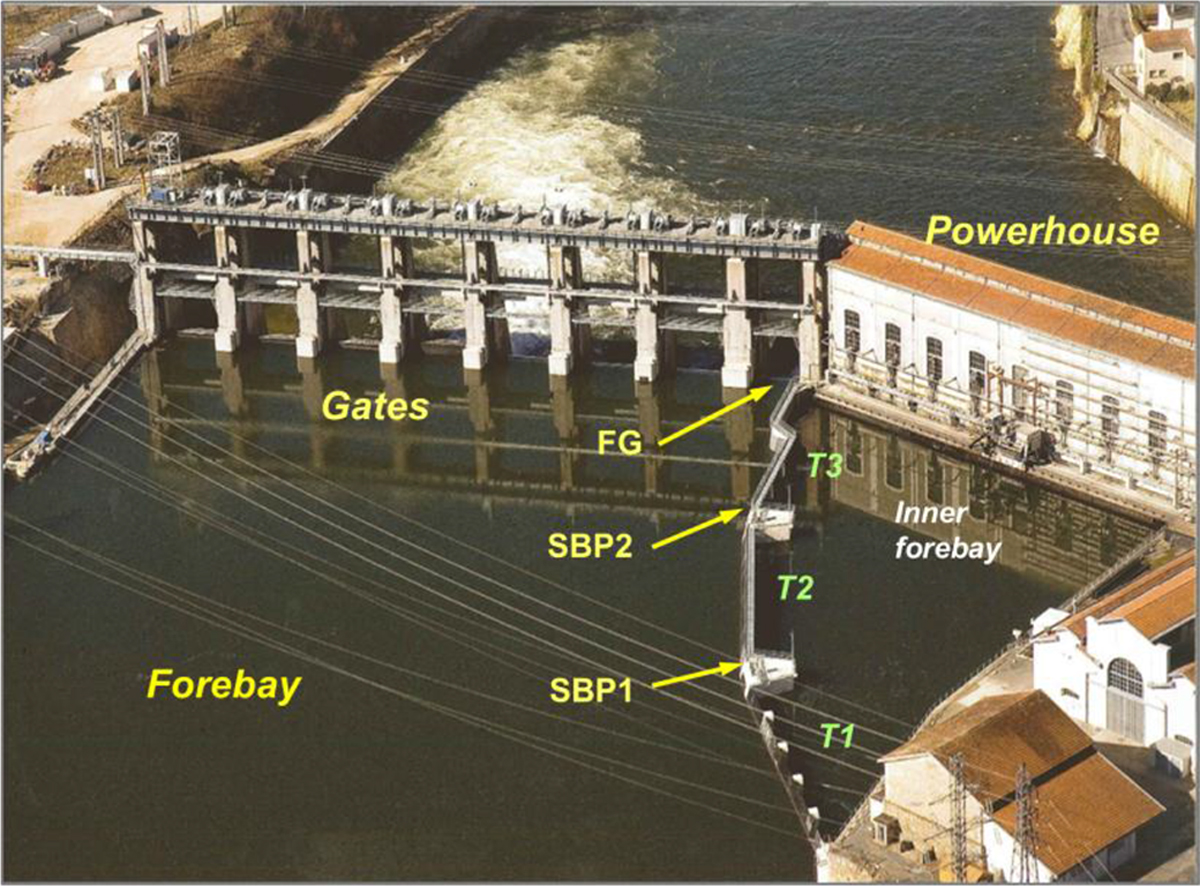

View of the guide wall and location of the bypasses (FG: flap gate; SBP1 and SBP2: secondary bypasses 1 and 2; bays T1, T2 and T3).
